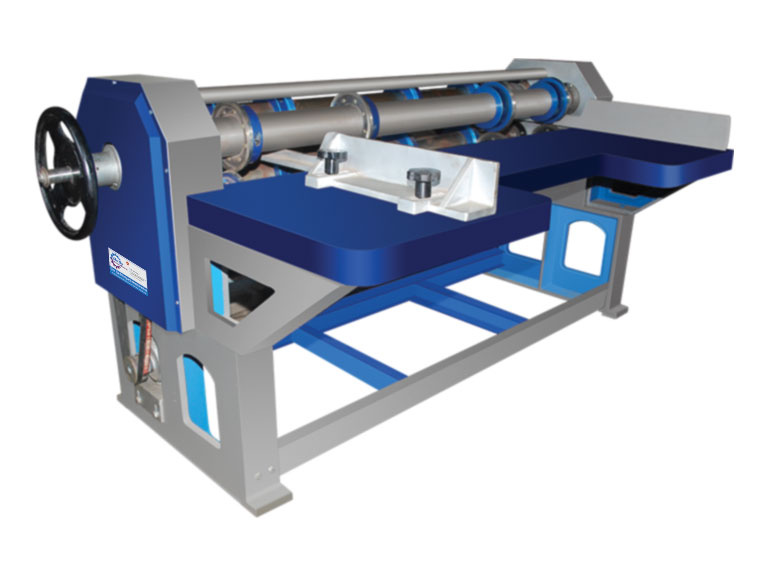

Four-Bar Rotary Machine
This machine is used for creasing and cutting corrugated board simultaneously. Creasing and cutting heads are adjustable. Two side gauges are provided for accuracy in cutting and creasing of boards. The speed is 300 ft. per minute and the minimum distance between two dies is 3 inches
| Size | Motor H.P. | Wt. App. (MT) | Floor Space |
|
65" 75" 85" 95" |
2.0 2.0 2.0 3.0 |
1.7 1.9 2.1 2.4 |
7'x4' 8'x4' 9'x4' 10'x4' |
